Heidelberg GTO46 -Technical features and advantages

  1. Year of Manufacture: 1980 – 1986
  2. Type of Printing: Commercial printing, since this machine prints papers weighing less than 350 g
  3. Maximum print formats: 46x36cm
  4. Humidification Systems: Conventional (old system)
  5. Number of Printing Bodies: 1/2/4/5 Colors + Optional aqueous or UV varnish
  6. Perfector System (Optional System): The perfector system is whereby the machine turns the sheet, making printing front and back simultaneously possible.
    1. Example: Suppose we have a 4-color machine with a perfector System in the middle of bodies 1 and 3, the machine will allow us to simultaneously print two colors front and back. 2/2 or, in the case of not using the Perfecting System, it will print four colors on one side only 4/0.
  7. Sheet Weight: 0.03 – 0.60 mm
  8. Plate Placement System: Manual or Conventional or fast Jaw System.

Rollers Set


Heidelberg Gto46 Ink Rollers Set Part Number: RO0011

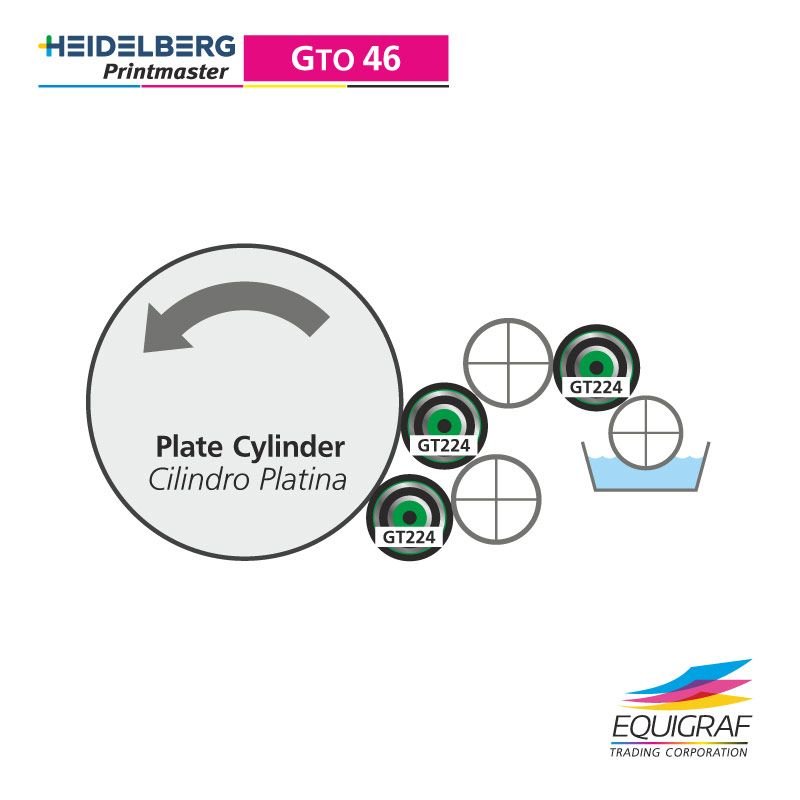

Heidelberg Gto46 Dampening Conventional Rollers Set Part Number: RO0012


Heidelberg Gto46 Bareback Set Part Number: RO0013

Rollers diagrams

Original spare parts


Heidelberg Bearing Axial Kit Part Number: 00.550.0433


Heidelberg Belts Main Drive Part Number: 00.270.0098


Heidelberg Blanket Clamping Bars Part Number: 69.006.002F


Heidelberg Cam Follower Part Number: 00.550.1071, 00.550.0730

Heidelberg Cp2000 Display Part Number: 00.783.0002 E5/B


Heidelberg Delivery Gripper Bar Part Number: 42.014.003F
